The engineering curriculum offered at Pemberton Township Highschool included a formal conceptual to prototype design process as their senior course.
Conceptual Design Presentation
As part of taking this course, students had to register their project idea the summer before and complete a conceptual design presentation.
The conceptual design review acted as the entry ticket for the class and passing provided funding for the project.
Prototype Optic Set Up

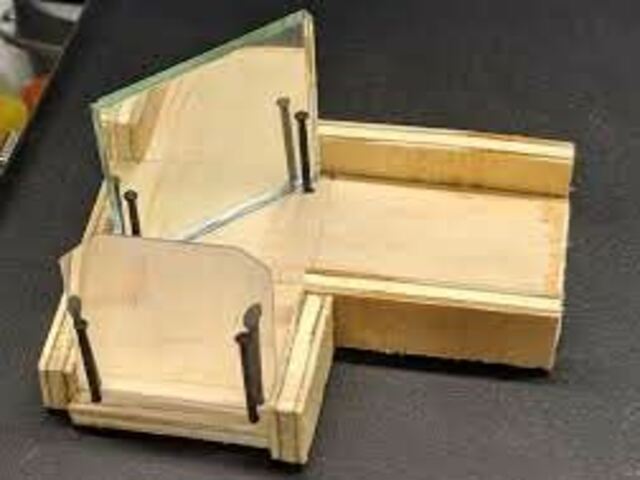

This prototype optical setup was meant for testing the lens calculations for scaling the device screen.
The LCD display is set in front of the device and it should be magnified to be the correct size when placed in front of the eye.
Rapid Prototyping Stand

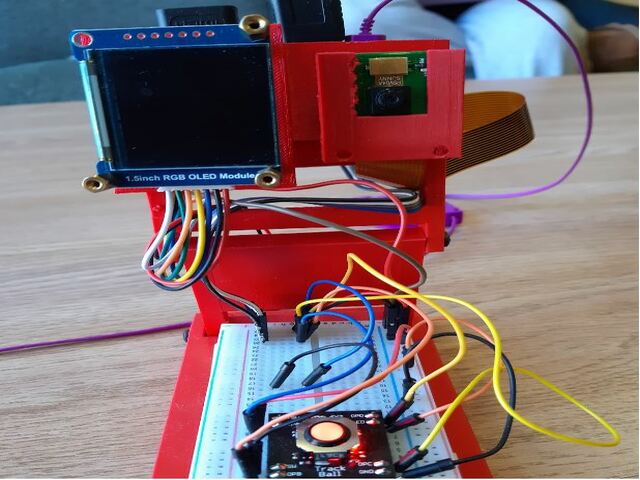

This stand was designed to be used for rapidly prototyping using a Raspberry Pi model Zero W+, Adafruit OLED SSD1351, Arducam 0v6547, and Parallax trackball.
Designed in Autodesk Inventor 2019
3D printed using a Monoprice Mini Delta V1.0 in Ultimaker Cura Slicer.
System Home Screen

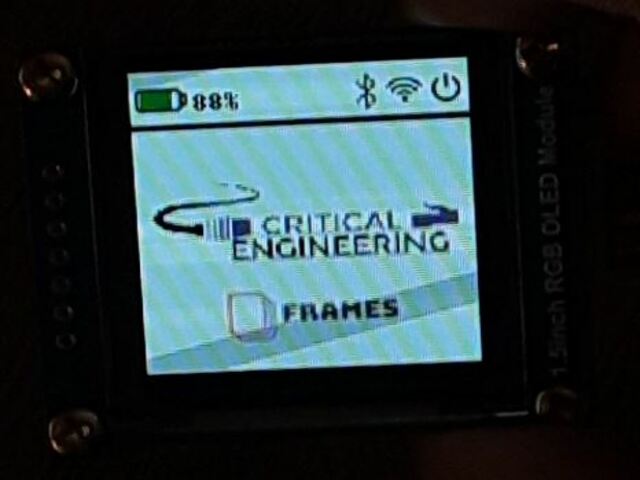

A screenshot of the LCD display showing the FRAMEs operating system home screen.
Using RPI GPIO the user could interact with the system using the trackball peripheral.
